Product Description:

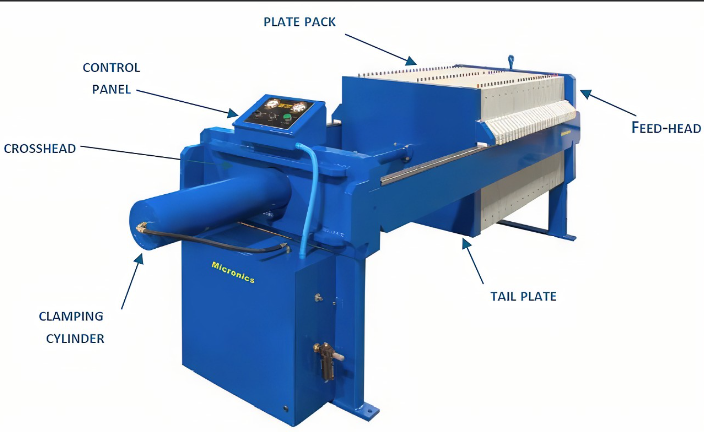

Frame is the basic component of filter press. Thrust plate and compass plate is on the two side of filter press, connected by side beams. Main beam supports the filter plate, filter frame and press plate.
Thrust plate connects filter press and foundation. The feeding hole of chamber type filter press is in the middle of thrust plate, other four holes are on four corners. The upper two holes are inlet of cleaning solution and compressed air; the lower holes are outlet.
Features:
-
| Stable Performance |
| Easy Operation |
| High Temperature Resistant |
| High Pressure Resistant |
| Durabillity |
Technical Parameters:
| Filter Plate Size (mm) | Filter Area (m2) | Quantity of FIlter Plate (pcs) | Filter Chamber Volume(L) | Thickness of Cake (mm) |
| 630*630 | 20 | 16/15 | 260 | 30 |
| 800*800 | 30 | 15/14 | 450 | 30 |
| 800*800 | 40 | 20/19 | 600 | 30 |
| 800*800 | 50 | 25/24 | 750 | 30 |
Applications:
1, Sewage treatment Printing and dyeing wastewater, sewage, smelting, leather, pharmacy sewage water brew, electroplating wastewater, sewage and waste, chemical electrolysis of water environment etc.
2, Pharmacy industry: Phytic acid, calcium, Chinese traditional medicine, saccharification, growth hormone, organophosphate etc.
3. Metallurgy, coal industry: Gold, silver, copper, zinc ore mineral powder, etc
4, Food industry: Vegetable oil, starch sugar, plant sweet, maltose, starch, maize, seaweed, kara glue, oral liquid, beer yeast, rice wine, white wine, fruit juice, beverage, plant protein etc.
5, Chemical industry: Coating, paint, silica, caustic soda, soda ash, alkali, salt mud (aluminum, aluminum polymerization acetylacetonate, gypsum, insurance, phosphor) etc.
6, Other solid liquid separation industries.
Support and Services:
- On-site consultation and assessment
- Customized system design
- Training for operators and maintenance personnel
- Regular maintenance and servicing
- Remote and field engineering services
FAQ:
Q: What is the brand name of the hydrocyclone water treatment product? A: The brand name of this product is UNIVEE. Q: Where is the press filter product manufactured? A: This product is manufactured in China. Q: What is the warranty period for the press filter product? A: We can provide 1 year's warranty for main components under nomal operation condition.
